Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Shenzhen Wardmay Technology Co., Ltd
[China]

Address
Longcheng Shenzhen Guangdong
Phone
86-0755-27896160
Contact name
Mary Lee

Quick Information

  • Brand Name: Wardmay
  • Place of Origin: China
  • Model Number : WDM-H265IP8200SL
  • Sensor : CMOS
  • Special Features : Waterproof / Weatherproof
  • Style : Bullet Camera
  • Technology : Infrared
  • Type : IP Camera
  • :

Description

Features
* Super Starlight Chips (SONY 307)
* Super clear day and night color image
* Support ONVIF 2.4 protocol, H.265 profile
* Intelligent 2D,3D DNR
* Intelligent dimming (according to the intensity of the ambient light to change the brightness of the fill light, prevent overexposure, faster recognition of person faces)
* Low illumination, no need to add too much light, two lights like two similar indicators, not dazzling, good quality.
* Support onvif
* With waterproof microphone & bracket
Specifications

ModelWDM-H265IP8200SL
H.265 2.0MP Starlight Network Day and Night Security IP Camera
Image Sensor1/2" 2.0M Pixel Sony IMX307 CMOS
Dynamic Range100dB
SNR≥50dB(AGC OFF)
Lens3.6mm lens
Illumination0.0001Lux/F1.2(Color Mode);0.0001 Lux/F1.2(B&W mode);0Lux (IR CUT ON)
D/N modeAuto IR-CUT switch, B/W, Color, Outer control
Gain ControlAuto/ Manual
White BalanceAuto, Indoor, Outdoor, Sodium Lamp, Manual
DNRSupport 2DNR,3DNR
Exposure ModeProgram mode (customizable shutter interval ), shutter mode (1/5-1/20,000s), support slow shutter
Video CompressionH.265 Main Profile / H.264 High profile / M-JPEG
Max Resolution1920x1080/25fps
Video ResolutionMain stream:1920x1080,1280x960,1280×720,720×576,640×480
Substream:640×480,480x360,352×288,320×240,176×144,OFF
MJPEG:1280x720,OFF
Output code rateCBR or VBR: 32K~10M
OSDSupport Channel name, date on screen
Visit NO.3 Users in Mainstream, 6 Users in Substream
Network ProtocolsTCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
ONVIF ProtocolStandard ONVIF2.4
CompatibilitySupport HIKVISION,DAHUA,XM CMS,SEETONG UC2,Aebell NVR I8 ONVIF platform,NVR ONVIF protocol
Mobile P2PSupport Android,IOS visit
Network interface1ch 10/100BaseT Ethernet,RJ45
Power12V2A/POE
Working Temp-30°C ~60°C
Working humidity0%-90% RH(NO CONDENSING)

Contact us:
------------------------------------------------------------
Mary Lee

Tel: +86-075584575180                  Mobile/Whatsap:+86-15915495854

Compay Web: www.wardmay.com

Web http://wardmay-cctv.en.made-in-china.com

Retail Web: https://www.aliexpress.com/store/5125026

Address:403, 4 Floor, MaYi Pioneer Park, Ru Yi Road, Ai Lian, Long Gang, ShenZhen, China, 518100


Features
* Super Starlight Chips (SONY 307)
* Super clear day and night color image
* Support ONVIF 2.4 protocol, H.265 profile
* Intelligent 2D,3D DNR
* Intelligent dimming (according to the intensity of the ambient light to change the brightness of the fill light, prevent overexposure, faster recognition of person faces)
* Low illumination, no need to add too much light, two lights like two similar indicators, not dazzling, good quality.
* Support onvif
* With waterproof microphone & bracket

Specifications

Model WDM-H265IP8200SL
H.265 2.0MP Starlight Network Day and Night Security IP Camera
Image Sensor 1/2.8” 2.0M Pixel Sony IMX307 CMOS
Dynamic Range 100dB
SNR ≥50dBAGC OFF
Lens 4/6mm lens
Illumination 0.0001Lux F1.2(Color Mode); 0.0001 Lux F1.2(B&W mode); 0Lux(IR CUT ON)
D/N mode Auto IR-CUT switch, B/W, Color, Outer control
Gain Control Auto/ Manual
White Balance Auto, Indoor, Outdoor, Sodium Lamp, Manual
DNR Support 2DNR3DNR
Exposure Mode Program mode (customizable shutter interval ), shutter mode (1/5-1/20,000s), support slow shutter
Video Compression H.265 Main Profile / H.264 High profile / M-JPEG
Max Resolution (1920x1080)25fps
Video Resolution Main stream1920x10801280x9601280×720720×576640×480
Substream640×480480x360352×288320×240176×144OFF
MJPEG1280x720OFF
Output code rate CBR or VBR: 32K~10M
OSD Support Channel name, date on screen
Visit NO. 3 Users in Mainstream, 6 Users in Substream
Network Protocols TCP/IPHTTPNTPIGMPDHCPUDPSMTPRTPRTSPARPDDNSDNSHTTPSP2P
ONVIF Protocol Standard ONVIF2.4
Compatibility Support HIKVISIONDAHUAXM CMSSEETONG UC2Aebell NVR I8 ONVIF platformNVR ONVIF protocol
Mobile P2P Support AndroidIOS visit
Network interface 1ch 10/100BaseT EthernetRJ45
Power 12V2A/POE
Working Temp -30°C ~60°C
Working humidity 0%-90% RHNO CONDENSING



Contact us:
------------------------------------------------------------
Mary Lee

Tel: +86-075584575180                  Mobile/Whatsap:+86-15915495854

Compay Web: www.wardmay.com

Web http://wardmay-cctv.en.made-in-china.com

Retail Web: https://www.aliexpress.com/store/5125026

Address:403, 4 Floor, MaYi Pioneer Park, Ru Yi Road, Ai Lian, Long Gang, ShenZhen, China, 518100




Price

  • Delivery Port : Shenzhen

Product Image

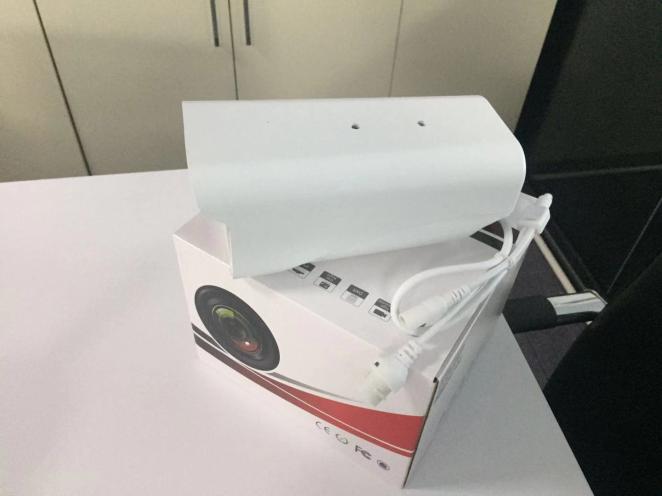

  • 1Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 1

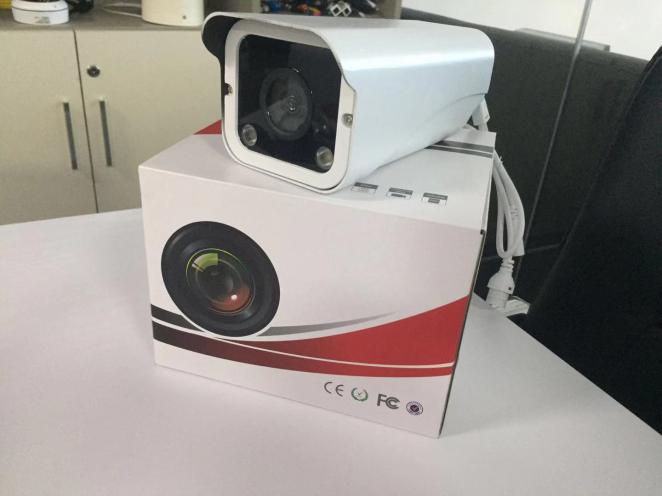

  • 2 Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 2

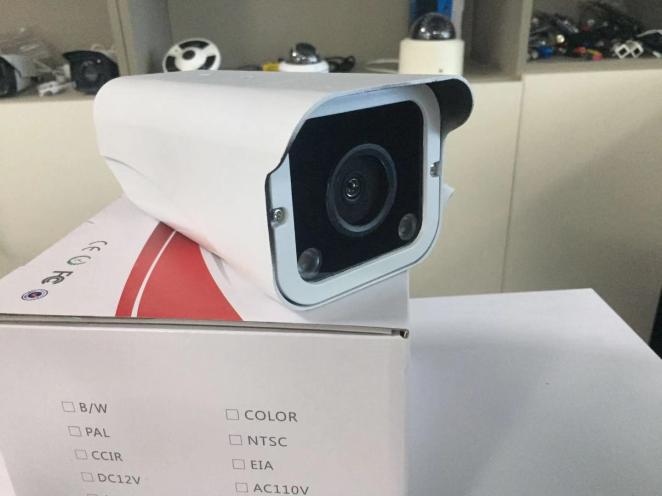

  • 3 Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 3
  • 4 Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 4
  • 5 Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 5
  • 6 Wdm CCTV H. 265 2.0MP Starlight Network Day and Night Security IP Camera image 6
